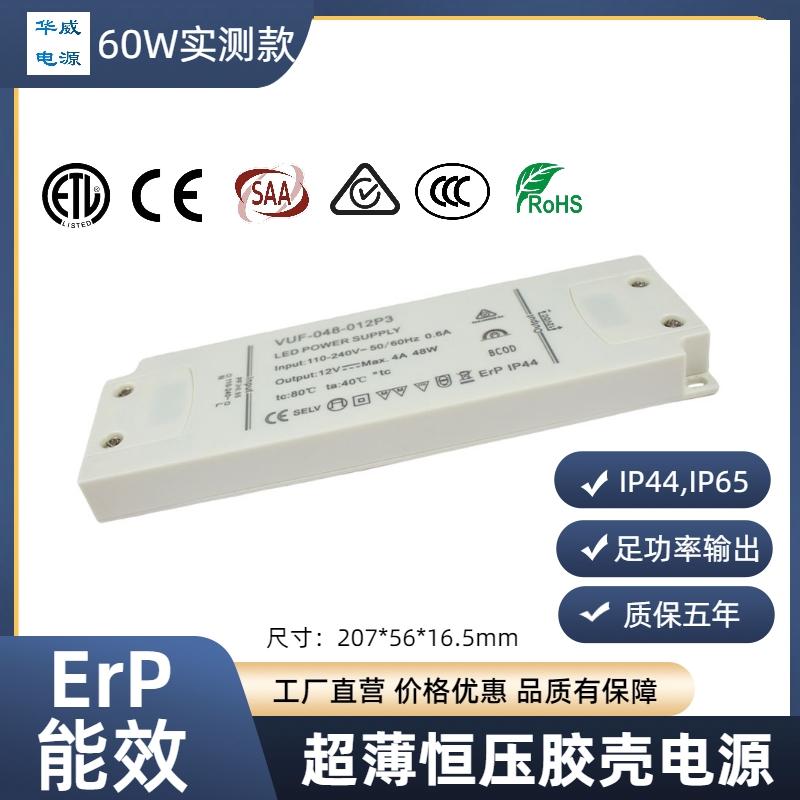

FEATURES
1. Constant Voltage
2. Double Insulated Class lI Power Supply
3. High Temperature Resistant Flame Retardant Plastic Shell
4. Waterproof GradeIP20/IP44/IP65 Chooseable
5. No Flicker, No Noise, Compatible With Various Controllers
6. Ultra-thin Design,Thickness Within 16.5mm
7. CE EMC ROHS CCC SAA CB UKCA ETL BIS ERP Certification
8. WorkingTemperature:-30~60℃
9. Over-Voltage, Over-Current,Short-Circuit Protection
SPECIFICAION
| MODEL |
VHF-060-012P4 IP44 |
VHF-060-024P4 IP44 |
| OUTPUT |
DC VOLTAGE |
12V |
24V |
| RATED CURRENT |
5A |
2.5A |
| CURRENT RANGE |
0-5A |
0-2.5A |
| RATED POWER |
60W |
| RIPPLE&NOISE(max) |
＜2.2V |
| VOLTAGE TOLERANCE |
±0.5V |
| INPUT |
VOLTAGE RANGE |
170-265VAC |
| FREQUENCY RANGE |
47-63Hz |
| POWER FACTOR(Typ.) |
≥0.95PF |
| EFFICIENCY(Typ.) |
87% |
| AC CURRENT(Typ.) |
0.31A/220VAC |
| PROTECTION |
Short circuit |
Protection type:Hiccpe mode,recovers automatically after condition is removed |
| Overload |
6A |
3A |
| ENVIRONMENT |
WORKING TEMP. |
-30~+50℃ (Refer to output load derating curve) |
| INGRESS PROTECTION |
IP44 design for indoor |
| STORAGE TEMP |
-40~+80℃ |
| SAFETY&EMC |
SAFETY STANDARDS |
EN61347-1;EN61347-2-13;SELV;IP44 approved |
| WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC I/P-FG:3.75KVAC O/P-FG:0.5KVAC |
| EMC Test Standards |
EN55015,EN61000-3-2,EN61000-3-3 |
| EN61547 |
| NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. |
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel
capacitor. |
|
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
